4x6 Garden Grid™ Watering System

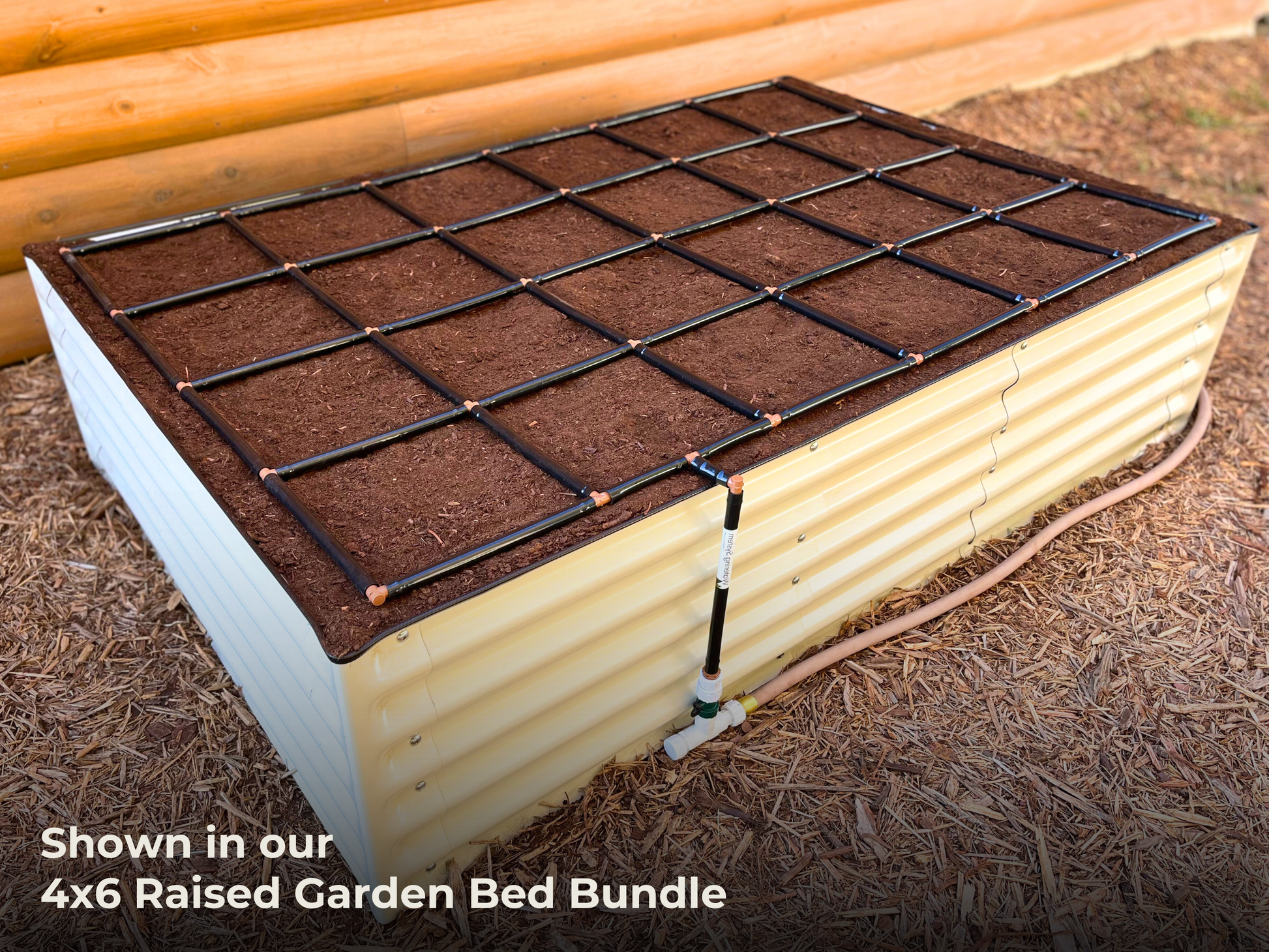

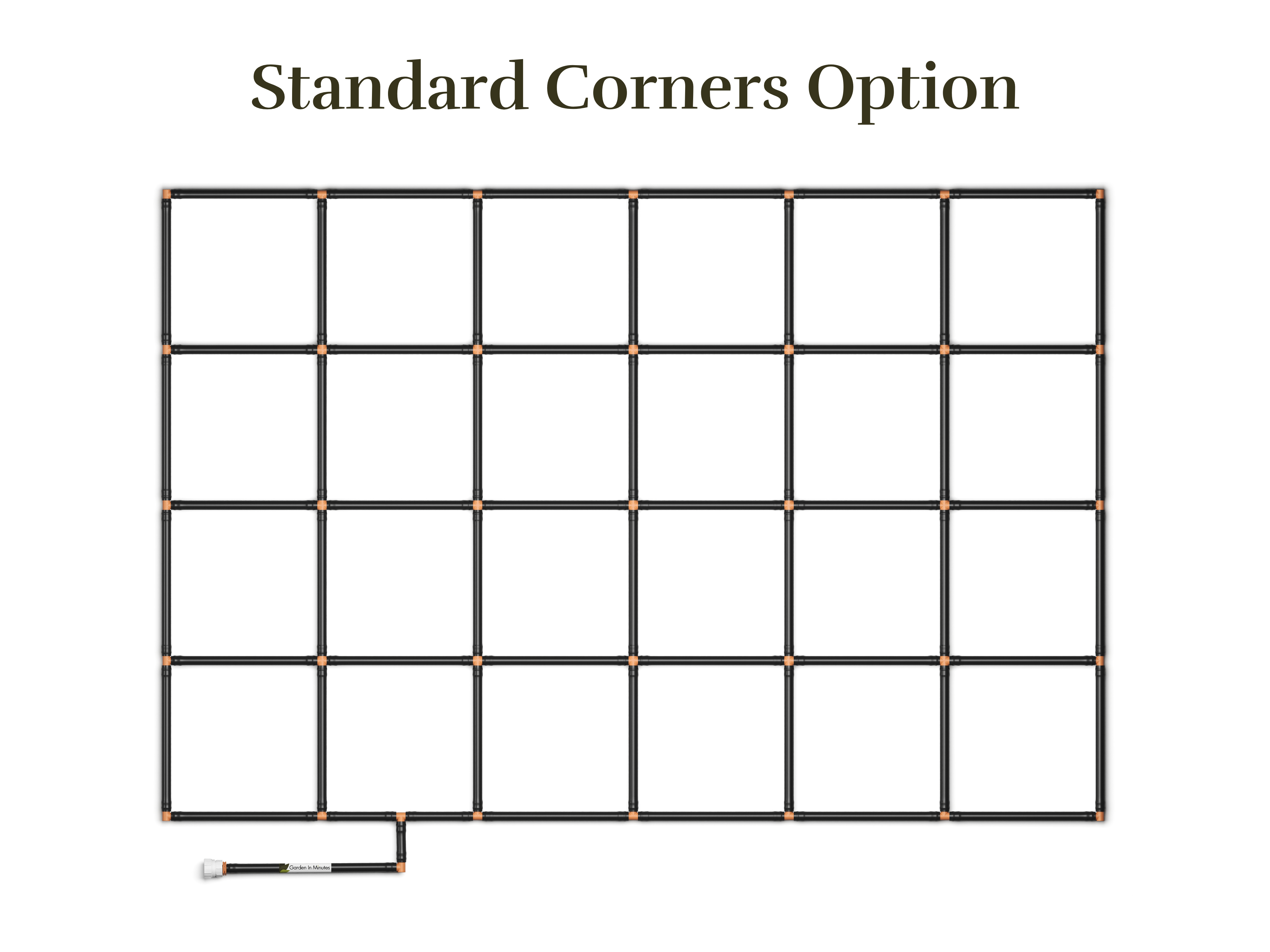

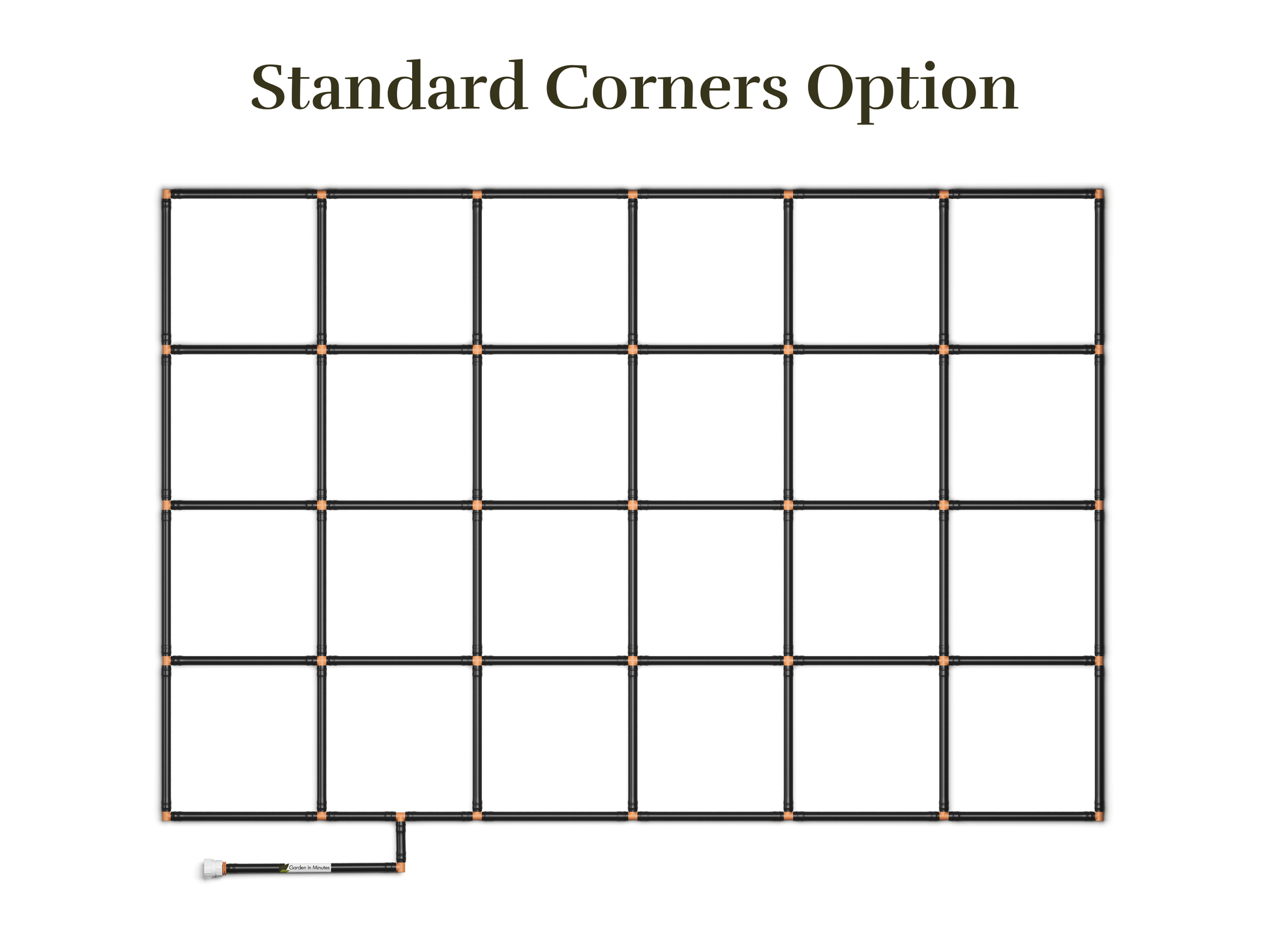

Our Standard Garden Grids™ fit most rectangular raised garden beds (like ours found here) and ground-level gardens.

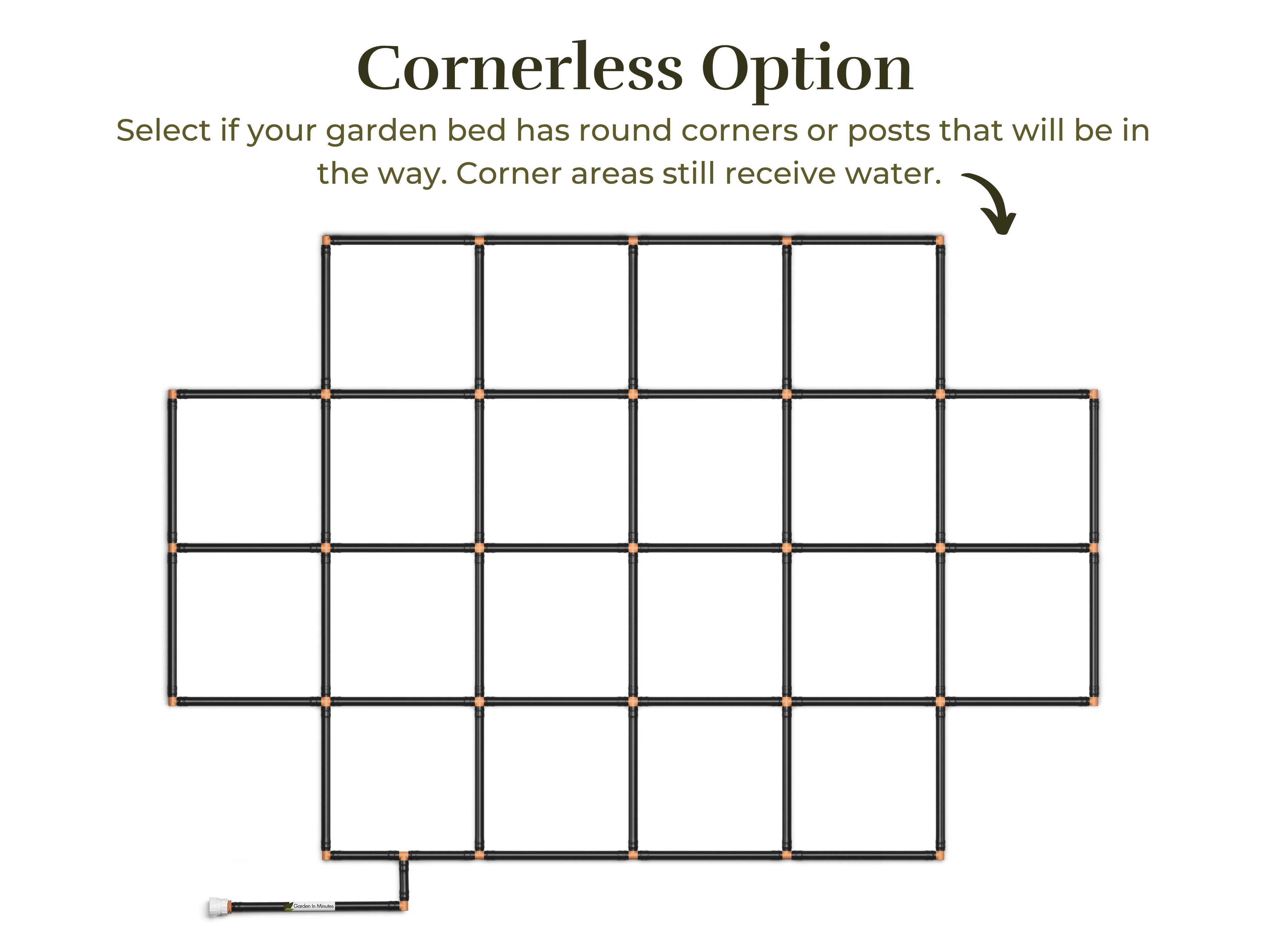

The Cornerless option is best for beds with rounded ends, oval shapes, or corner posts that interrupt a square interior.

Important tip: Always measure the interior dimensions of your garden bed, accounting for posts or curved corners. If you prefer a simple, all-in-one Garden Bed and Garden Grid solution look at our All-In-One Raised Garden Bundles.

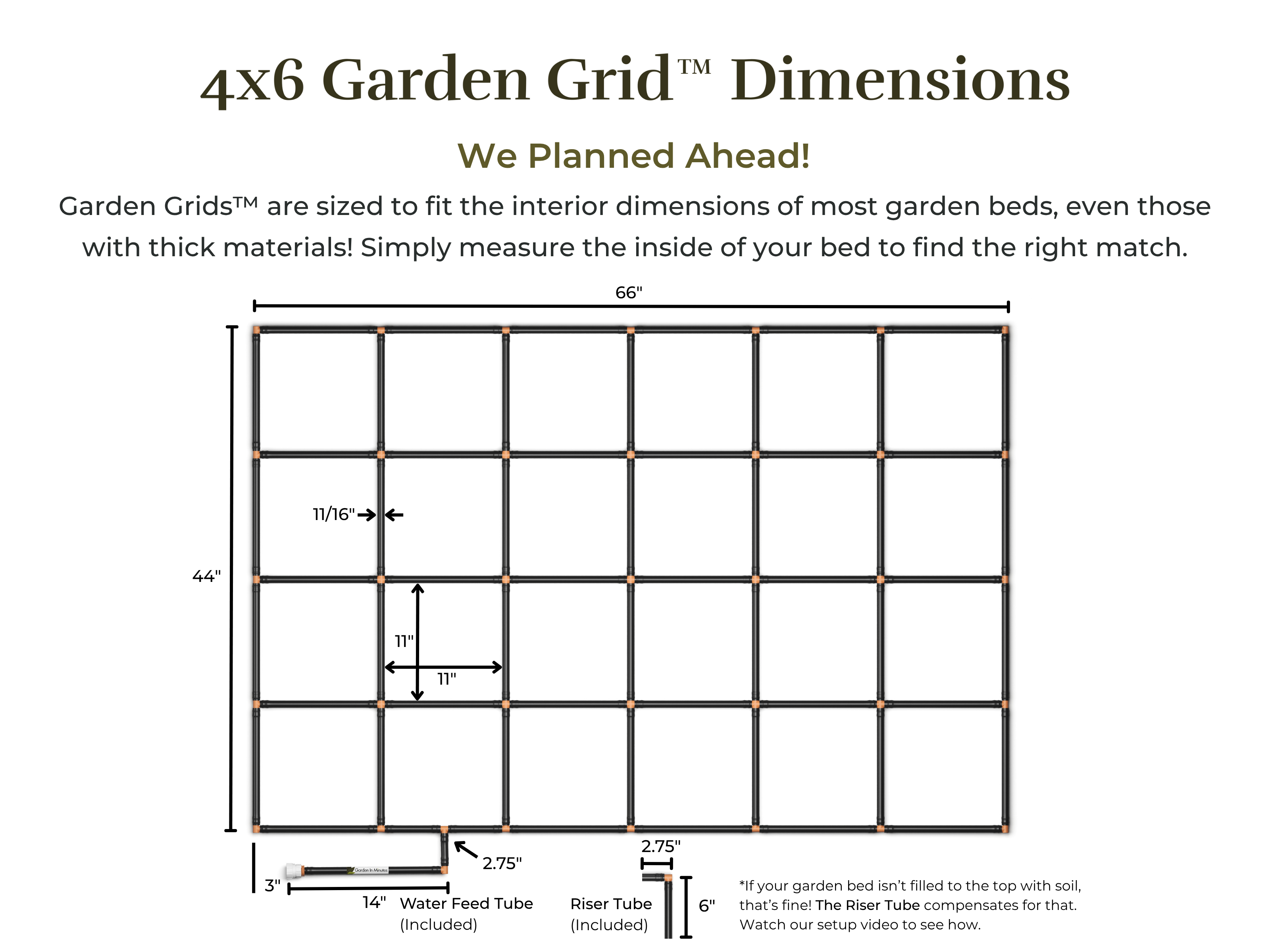

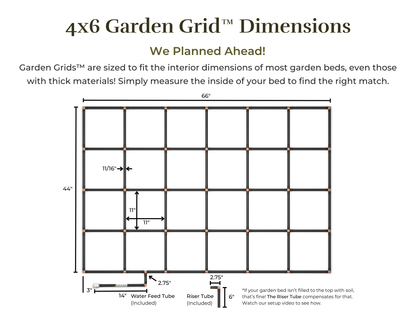

We size Garden Grids™ to fit the interior dimensions of most gardens, accounting for garden bed material thickness. To know which Garden Grid™ will fit your garden bed, reference the overall size of a Garden Grid™ in our product details and in the product title. Example: A 4×4 Garden Grid™ measures ~44″x~44″.

If your garden bed is larger than any single Garden Grid™ size, you can connect multiple Garden Grids™ together with our Garden Grid™ manifolds

*Assembled sizes can vary slightly.

Start by choosing the size that fits without going over your garden’s interior dimensions.

• If your bed is slightly larger, you can gently twist the outer tubes so they spray outward into the extra planting space.
• If you’re within an inch or two of the next size up, we recommend ordering the larger size.

We leave roughly ⅛″ of extra room at each tube and fitting connection, which allows you to slightly “shrink” the Garden Grid™. This is done by gently pushing and wiggling the tubes into the fittings to take up that extra space.

Examples:

• A 4×4 can adjust from 44″ × 44″ down to ~42.25″ × 42.25″
• A 3×8 can adjust from 33.5″ × 88″ down to ~32″ × 85″
• A 2×6 can adjust from 22.5″ × 66″ down to ~21.5″ × 63.75″

Twisting Garden Grid™ Tubes To Spray Outward

Yes. The Garden Grid™ works in both raised garden beds and ground-level gardens.

Refer to the dimensions listed on the product page to choose the best size for your garden.

Garden Grids™ are assembled by hand, and slight size variation is normal. The overall footprint can change slightly depending on how far each tube is inserted into its fittings.

We intentionally leave about ¼″ of adjustment room at each tube connection, allowing you to gently push the tubes further in if you need to slightly reduce the footprint to fit your garden bed.

This built-in flexibility helps ensure a proper fit without affecting performance.

Yes. You can can find our automatic hose timers below. They're a popular add-on to make watering your garden hands-free.

GIM™ 1-Zone Hose Timer
GIM™ 2-Zone Hose Timer

Pressure Reducer: No. Garden Grids™ do not require a pressure reducer.

Unlike drip irrigation or soaker hoses—which rely on small emitters and permeable tubing that can clog, burst, or fail at higher pressure—the Garden Grid™ uses open watering streams. When water pressure increases, the streams simply spray farther rather than stressing the system.

PSI range: Garden Grids™ are designed to work with a wide range of household water pressure. Most homes fall between 35–70 PSI, and we recommend a minimum of about 10 PSI for consistent performance. Typical household pressure is not a concern for Garden Grids™ the way it can be for drip systems.

Rain Barrel Supplies: A 1/4hp+ sump pump is recommended if using a rain barrel.

It depends on your water pressure, hose length, and layout.

Watch the video below for real-world examples and tips.

Yes! You can supply the Garden Grid™ from nearly any water source, as long as you have the right connection. Most gardeners use a standard garden hose from a spigot, but the Garden Grid™ can also be connected to an existing sprinkler or irrigation line.

For an easy connection, we recommend the GIM™ Irrigation Line Adapter. It’s a simple press-in fitting that turns compatible 1/2" irrigation line into a standard garden hose thread connection, so you can connect a hose, Garden Grid™, Garden Grid™ Manifold, timer, valve, splitter, or other GIM™ watering add-on.

From there, water flow is easy to control using a simple valve or one of our Garden Grid™ Manifolds with built-in shutoff valves, keeping your setup simple, visible, and easy to adjust.

We don’t put an expiration date on Garden Grids™—and for good reason. We still have original Garden Grids™ from 2013 that are working today. Quality and longevity matter to us, so we design our systems to be easy to set up and built to last, season after season. That means less time repairing or replacing parts and more time enjoying your garden.

Accidents can happen. If a tube gets nicked while digging or a curious pet gets a little too interested, we offer replacement parts to keep your Garden Grid™ working smoothly for years to come. You can find parts here, but if you don't see what you need just reach out and we’ll help you get everything back up and running.

No. The Garden Grid™ is lower-maintenance than most garden watering systems, including drip and soaker setups. It’s designed and tested using hard, mineral-rich well water to ensure reliable performance over time.

In normal use, maintenance is minimal. If you ever notice the spray pattern change, simply rinse the built-in filter screen—it likely caught debris before it reached the grid. In areas with heavy mineral content, lightly brushing off mineral buildup every year or two is a good habit.

Most gardeners set it up once and enjoy consistent watering season after season with little to no upkeep.

Sure do. Set up takes about a minute. Watch below to see.

Garden Grid™ Manifolds help you connect multiple Garden Grids™, adjust water flow directly at your garden (instead of at the spigot), and keep heavy hoses from hanging off your Garden Grid’s connector. They bring water up to the grid connection point, which is especially helpful for garden beds taller than 15″.

Manifolds are sold separately and come in Single and Double options.

Riser Tubes are included with every Garden Grid™. They’re used when your garden bed isn’t filled all the way to the top with soil, allowing the Garden Grid™ water connection to reach up and over the top edge of the bed.

Here’s a video about the Riser Tube:

Here’s a video about the Garden Grid™ Manifold:

Use Garden Grid™ Manifolds and a regular garden hose.
The bottom of each manifold has an inlet and outlet for garden hoses. Connect a hose to the outlet side, run it to your next garden, and connect it to another manifold or directly to a Garden Grid™.

Yes.

• Single Manifolds are ideal for one Garden Grid™
• Double Manifolds are designed for two grids side-by-side


You can find both manifold styles here.

Absolutely. Garden Grids™ are tested in our home state of Florida and are used by gardeners in every state across the U.S. and Provence in Canada in a wide range of climates.

The Garden Grid™ is made from BPA-free, American-made, UV-resistant LLDPE tubing with durable ABS and POM fittings, along with a PVC hose connector designed for secure, leak-resistant connections.

We intentionally use higher-grade materials than the basic LDPE tubing and polypropylene fittings commonly found in many watering products. Our materials are selected for their strength, stability, and ability to handle sun exposure, water pressure, and seasonal temperature changes—helping the system maintain its performance longer than typical alternatives.

The result is a stronger, more durable, garden-safe system built to last season after season—so you can grow with confidence.

Many gardeners start with hand watering, drip irrigation, or soaker hoses. While those options can work, they often involve multiple parts, ongoing adjustments, and uneven coverage across the garden.

The patented Garden Grid™ is pre-assembled and designed to deliver full-coverage, soil-level watering across your entire garden bed—without guesswork.

With the Garden Grid™, you get:

• Even watering for every plant, not just near emitters or hoses.
• Adjustable water flow, from gentle watering to a full stream
• Built-in square foot gardening–style sections that make planting more consistent and efficient


Watering at soil level helps saturate soil efficiently, reduces water loss to evaporation, avoids issues associated with wetting foliage, and supports beneficial soil microorganisms by keeping the entire garden bed evenly moist rather than concentrating water in select spots.

Garden Grids™ are also built for all-season durability, performing reliably from cold winters to hot summers.
